novotek vacuum ISO-K and ISO-F junctions. Precision vacuum fittings, crossses, flages with tubes, tees and measuring tees

ISO-K Vacuum Junctions

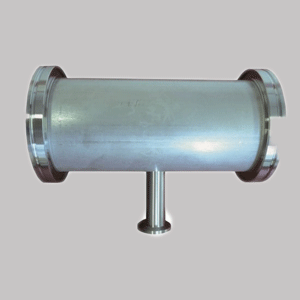

Novotek ISO to KF Tee ISO-K Tee with adapter to KF. Stainless steel

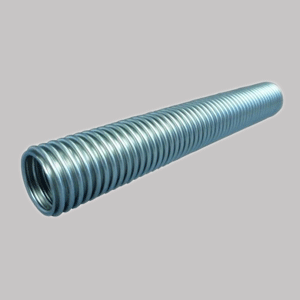

Novotek ISO-K Flexible Tubing Stainless Steel corrugated flexible tubing. SS 304 and SS 316L

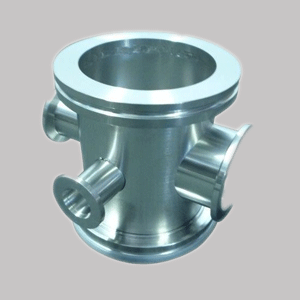

Novotek ISO-K instrument cross 6-way cross with flange for instruments

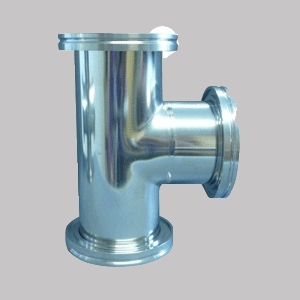

Novotek ISO-K Tees Stainless steel ISO-K Tees, ISO-K Angles and ISO-K Elbows

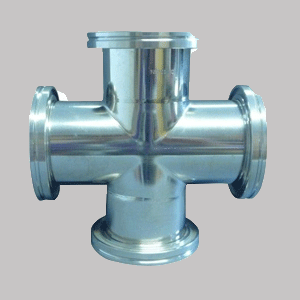

Novotek ISO-K Cross ISO-K cross, 4-way stainless steel and cross with instrument flange

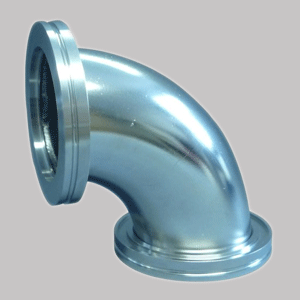

Novotek ISO-K Elbow Angles Stainless steel ISO-K Elbows. Aluminum reducers

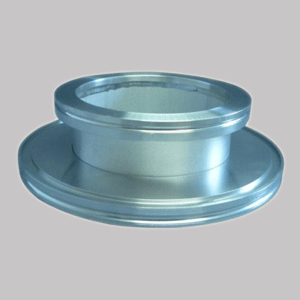

Novotek ISO-K Reducers Stainless Steel ISO K reducers. SS316

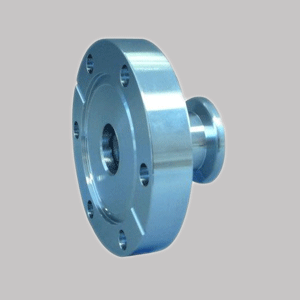

Novotek ISO-K Adapters Stainless steel ISO-K to KF adapter. ISO-K Joint piece

ISO-K clamping flange components and connecting elements In accordance with DIN 28404 and ISO 1609
Novotek clamping flange components are manufactured in accordance with DIN 28404 and ISO 1609. All components manufactured by Novotek are 100% leak-tested and have leak rates better than 10–9 mbar.l/s.
Standard sizes are NW 63 to 320. Nominal widths of up to 630 can be manufactured upon request. ISO-K clamping flange connections are suitable for establishing high-vacuum connection from 10–9 mbar to 1.5 bar. Assembly is via screw clamps, claws or a collar flange with snap ring and screws. The clamps, claws or screws must be tightened such that the flanges butt against the centering ring. This requires a considerable increase in torque. Sealing takes place according to the respective requirements via elastomer seals or an aluminum sealing ring. In the case of metal seals, the increased contact forces mean that correspondingly more screw
Clamps are required (see following table). A collar flange provides a problem-free transition to ISO-F. The transition to KF connections and also CF connections is easily possible using ISO-K/KF or ISO-K/CF adapter pieces.

Materials Details and Specifications operation temperatures, sealing materials and clamping elements
