Kern/sauter gauges and tools

Force Gauges, Thickness Gauges, Hardness Meters, Miscellaneous Meters

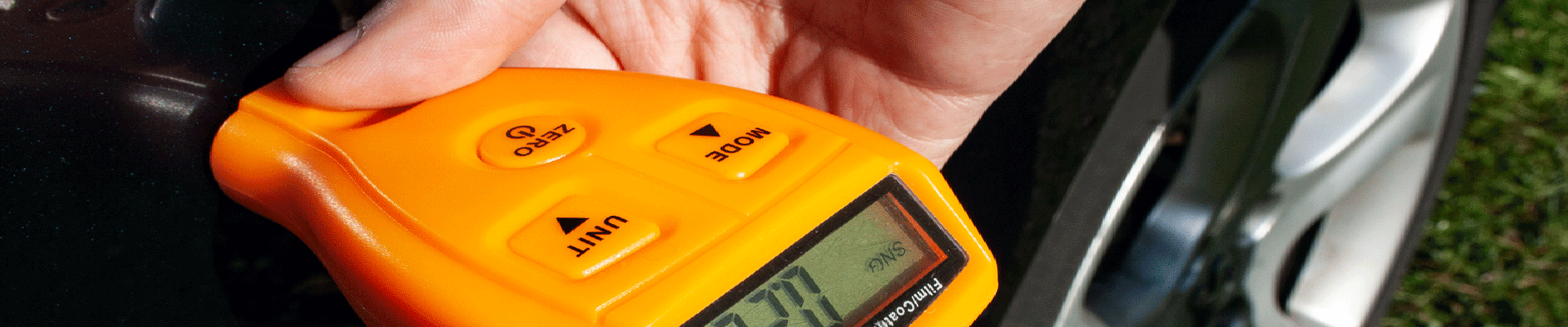

Sauter/Kern Thickness Gauges ... TB External sensor for difficult-to-access measurements. Base plate and calibration foils included. Delivered in a hard carrying case. Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of approx. 1 % of the measured value. SAUTER TB 2000-0.1F.: Specifically designed for the automobile industry. Selectable measuring units: µm, inch (mil). Auto-Power-Off
TC Ergonomic design for easy handling. Data interface RS-232, included. Base plate and calibration foils included. Delivered in a hard carrying case. Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of approx. 1 % of the measured value. Selectable measuring units: µm, inch (mil).
TE External sensor for difficult-to-access measurements. External sensors with other measuring ranges are available on request. Data interface RS-232, included. Base plate and calibration foils included. Delivered in a hard carrying case. Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of approx. 1 % of the measured value. Selectable measuring units: µm, inch (mil). Auto-Power-Off
TF LCD display, backlit, display of all information at a glance. Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of approx. 1 % of the measured value. Scan mode allows continuous measurement or single point measuring mode. Mini Statistics Kit: displays the measured result, the average value and the max and the min value. Internal memory up to 99 values. Selectable measuring units: µm, inch (mil). Base plate and calibration foils included. Data interface RS-232 standard.

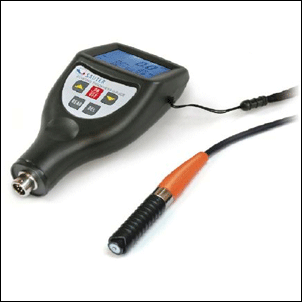

TG LCD display, backlit, display of all information at a glance. Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of approx. 1 % of the measured value. Scan mode allows continuous measurement or single point measuring mode. Mini Statistics Kit: displays the measured result, the average value and the max and the min value. Internal memory up to 99 values. Selectable measuring units: µm, inch (mil). Base plate and calibration foils included. Data interface RS-232 standard. Delivered in a hard carrying case. External sensor for difficult-to-access measurements

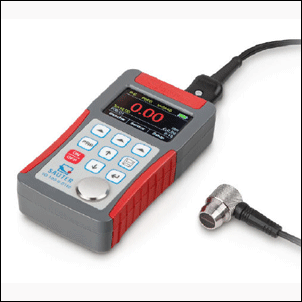

Kern/Sauter Ultrasonic Thickness Gauges ... Ultrasonic Thickness Gauges TN External sensor. Data interface RS-232, standard (only for models with readout [d] = 0.01 mm)Delivered in a hard carrying case. Scan mode (10 measurements per sec.) or single point measuring mode possible. Internal memory for up to 20 files (with up to 100 values per file). Selectable measuring units: mm, inch
TU External sensor for difficult-to-access measurements. Base plate for adjustment included. Data interface RS-232. Delivered in a hard carrying case. Scan mode (10 measurements per sec.) or single point measuring mode possible. Internal memory for up to 20 files (with up to 100 values per file). Function to set limits, programming of Max./Min., in pull and push direction, with output of audible and optical signal. Ideal mode for efficient and accurate testing of standard parts. Selectable measuring units: mm, inch

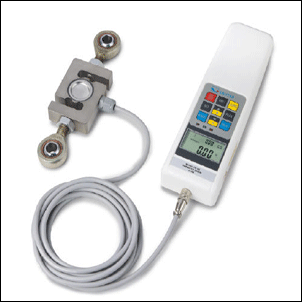

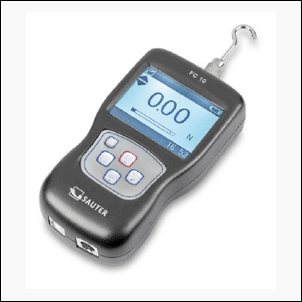

Kern/Sauter Digital Force Gauges ... Digital Force Measurement Gauge Turnable display: automatic direction identification. Secure operability due to ergonomic design. Real time or Peak Hold Mode to observe transients or capture peaks. Selectable measuring units: N, lb, kg, oz. Auto-Power-Off. With one of the two optional attachments for tensile strength testing, the SAUTER FK can become a tensiometer for testing the material tension characteristics of cables, threads, wires, twine etc. (see accessories). Standard attachments: as shown below, extension rod: 90 mm. Can be mounted on all SAUTER test stands
FH FL Universal Digital Force Measurement Gauge FH Turnable display with backlight. Can be mounted on all manual test stands. Digital force gauge with internal sensor. Data interface RS-232, included. Standard attachments: as shown below, extension rod: 90 mm. Delivered in a hard carrying case. Selectable measuring units: N, lb, kg. Real time or Peak Hold Mode to observe transients or capture peaks. Function to set limits, programming of Max./Min., in pull and push direction, with output of audible and optical signal. Ideal mode for efficient and accurate testing of standard parts. Auto-Power-Off. Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
FL Turnable display with backlight. Real time or Peak Hold Mode to observe transients or capture peaks. Metal housing for durable usage in harsh environmental conditions. Can be mounted on all SAUTER test stands. Capacity display: A bar lights up to show how much of the measuring range is still available. Function to set limits, programming of Max./Min., in pull and push direction, with output of audible and optical signal. Ideal mode for efficient and accurate testing of standard parts - ideal mode for efficient and accurate testing of standard parts. Internal memory for up to 500 measurements. Continuous analogue output: Linear voltage signal in relation to the load (0–2 V). Delivered in a hard carrying case. Selectable measuring units: N, kN, kgf, ozf, lbf
Kern/Sauter Mechanical Force Gauges ... Dual scale: shows Newton and kg. Rotatable display unit for an easy calibration of the instrument. Peak hold function by drag pointer. Can be mounted on all manual test stands. Zeroing by a short push of the switch. Delivered in a hard carrying case
DA Quick pin system: The four bottle mounts (holders) are pushed in, instead of being screwed in, to save time. This allows you to reconfigure quickly for other bottle sizes. Metal housing for durable usage in harsh environmental conditions. Capacity display: A bar lights up to show how much of the measuring range is still available. Internal data memory saves up to 500 measurements. The content of the memory can be transferred to the PC using optional software. USB and RS 232 data interfaces to the PC included. Peak Hold Mode to capture peaks. Function to set limits: Input of an upper/lower limit value. A visual and acoustic signal supports the measuring operation.
DB Rotary sensor for dynamic testing of electric screwdrivers (for models with [Max] ≤ 50 Nm). Measurement precision: +/- 0,5% of [Max]. Metal housing for durable usage in harsh environmental conditions. Capacity display: A bar lights up to show how much of the measuring range is still available. Internal data memory saves up to 500 measurements. The content of the memory can be transferred to the PC using optional software. Real time or Peak Hold Mode to observe transcients or capture peaks. Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed. The process is supported by an acoustic and visual signal

Kern/Sauter Hardness Testers ... HN User-friendly operation: The compact version enables the product to be used in a significantly wider range of applications compared with traditional devices. The measuring device has been designed for one-hand operation and this allows the user to work more quickly and flexibly. Modern LCD display: Optimised for industrial applications: increased luminosity and backlight can be switched on, so that the display can be read from any angle. All measurement directions possible (360°) thanks to an automatic compensation function. Internal impact sensor included (Type D). Selectable measuring units: Rockwell (B & C), Vickers (HV), Brinell (HB), Shore (HSD), Leeb (HL). Internal data memory for up to 500 measurements with date and time. USB-PC data output: Easy to install on any PC. Delivered in a hard carrying case
HK Measures all metal samples (> 3 kg, thickness > 8 mm). External impact sensor standard (Type D). Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HK-D. offers the highest level of mobility and flexibility. All measurement directions possible (360°) thanks to an automatic compensation function. Delivered in a hard carrying case. Measurement value display: Rockwell (Type A, B, C), Vickers (HV), Shore (HS), Leeb (HL), Brinell (HB). Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
HO Principle: The SAUTER HO measures using a Vickers diamond tip, which is pressed into the test piece with a defined force. After that the tip is moved into high-frequency ultrasound vibrations. The hardness is derived from the attenuation. Advantages compared with Rockwell and Brinell: Less test force and therefore only microscopic, small penetrations means that the testing is less destructive. Advantages compared with Leeb: The high requirements for the weight of the test object are no longer required, in most cases. Mini statistics function: Display of the measuring result, the number of measurements, the maximum and minimum value as well as the average value and the standard deviation. Measurement data memory saves up to 1000 measurement groups each with 20 individual values. Scope of supplies: Display unit, UCI sensor unit, transport case, software to transfer the saved data to the PC, accessories.

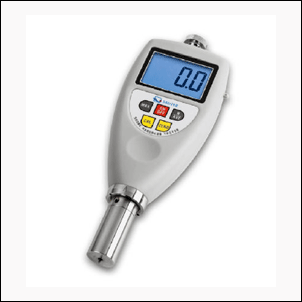

HB Typical application: measurement of penetration (Shore). Particularly recommended for internal comparison measurement. Standard calibrations e. g. to DIN 53505 are often not possible because of very narrow standard tolerances. Shore A rubber, elastomers, neoprene, silicone, vinyl, soft plastics, felt, leather and similar material. Shore D plastics, Formica, epoxides, Plexiglas etc. Shore A0 foam, sponge.

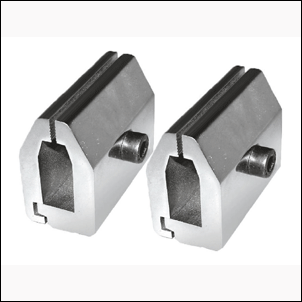

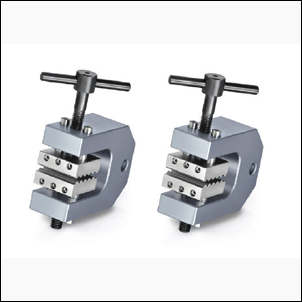

Kern/Sauter Clamps & Test Fixtures ... Configurable clamping tools

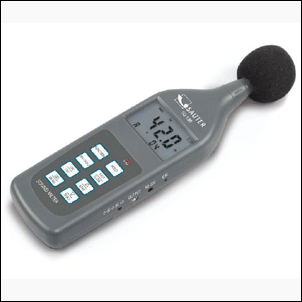

Sauter Sound Meter, Light Meter ... SW Ideal for measurements for workplaces which are outdoors, e.g. at airports, on building sites, in road construction etc. with broad access to spectrum thanks to the highly-accurate 24-Bit A/D converter. Floating point evaluation for higher level of accuracy and better stability. Continuous pull-out tape measure for precise measurement around the body. A specially-developed algorithm permits a compliant dynamic range of more than 120 dB! (SW 1000: > 123 dB; SW 2000: > 122 dB). Three profiles and 14 user-defined measurements can be calculated in parallel with different frequency and time weighting. Different sound pressure levels can be selected, such as, for example, Laeq, LcPeak, LaF, LaFMax, LaFMin, SD, SEL, E. LN statistics and display of the graph showing the progression of time. Octavo function for targeted sound analysis. TRACK function with graphic display of a measurement.
SP Compact photometer, optimised for accurate light measurement, and of LED light.For measuring illumination of office workstations, production workstations. Photo sensor: Silicon diode, filtered. Cosine correction for angular incident light. Data-hold function, to freeze the current measurement. Rotating sensor unit (+ 90° and -180°) for optimum alignment to the light source. TRACK function for continuous recording of variable environmental conditions. Selectable measuring units: fc (foot-candle), lx

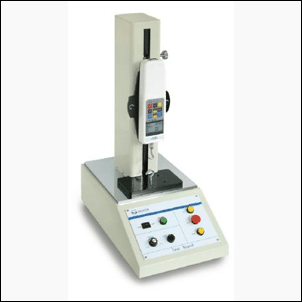

Kern/Sauter Test Stands ... Force Measurement Test Stands TVM Premium operation panel:. Digital speed display. Digital repeat function display . Force controlled automatic switch off (Test stop after achieving an adjusted limit load), only when used with force gauge SAUTER FH. Repeat function for durability tests (multiple up and down, adjustable). Digital speed display: shows the displacement speed. Solid and flexible possibilities of fixation (see accessories). Possibilities to attach force gauges (for SAUTER FH, FA, FK, FL):.Force gauges with internal sensor (up to 500 N capacity), only for SAUTER TVM 5000N230N, SAUTER TVM 10KN120N. Force gauges with external sensor (starting at 1,000 N capacity) .Large illustration with length measuring unit, force gauge and mount for test objects (not included).
TVO Motorized test stand for tension an compression tests. Table-top design for comfortable operation. Robust design for durable use. Easy-to-access safety switch-off. Upper and lower end point, can be set individually. Automatic or manual operation mode. Large illustration: Can be used for force gauges up to 500 N.
TVP Provides quick and consistent testing. High level of security with repeated measurements. Provides maximum versatility and precise measuring results. Slide construction for distance measurement. Large base plate with various holes for fixture mountings. Maximum carriage height above base plate: 318 mm. Max travel with one stroke: 78 mm.
TVS Motorized test stand for tension an compression tests. Premium operating panel. Digital speed display. Digital repeat function. Control of the test bench using SAUTER AFH PC software. For constant speed from the smallest to the maximum load. Allows testing at minimum speed and full load. For higher positioning accuracy. Precise starting and stopping, without run-on, even at high speeds. Precise adjustment of the process speed using the information shown on the display[/]. Maximum travel ensured by electronic end switch. Large working area through long guide columns as standard, which allows a wide range of fixing options. SAUTER LA length measuring device as standard, to read the measurement range with a readout of mm. Installation options of all clamps up to 2 kN

Force Measurement Accesories ...

Height Rods, Batteries, Interface Cables, Covers, Stands, Displays, Adapters
