Kern Load Cells

Load Cells

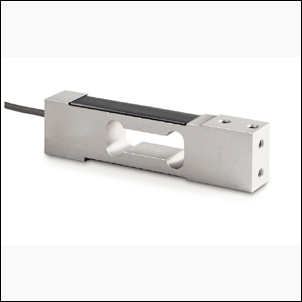

Single Point Load Cells ...

CP-P1 Accuracy in accordance with OIML R60 C3, CE and RoHS compliant. Protection against dust and water splashes IP65 (in accordance with EN 60529). Aluminium, anodised
CP-P2 Accuracy in accordance with OIML R60 C3, protection against dust and water splashes IP65 (in accordance with EN 60529). Aluminium alloy, anodized. Maximum platform size 100–300 kg: 400×400 mm. Maximum platform size 400–500 kg: 450×450 mm. Nominal sensitivity: 2 mV/V
CP-P3 Accuracy in accordance with OIML R60 C3,CE and RoHS compliant,protection against dust and water splashes IP65 (in accordance with EN 60529). Maximum platform size 2350×400 mm
CP-P4 Maximum platform size 200×200 mm
CP-P9 Accuracy in accordance with OIML R60 C3. Dust and spray protection to IP68/IP69K (in accordance with EN 60529), welded to create a hermetic seal. Stainless steel. Suitable for Platform scales, Checkweighing. Maximum platform size 10–50 kg. 400×400 mmMaximum platform size 100–500 kg: 800×800 mm

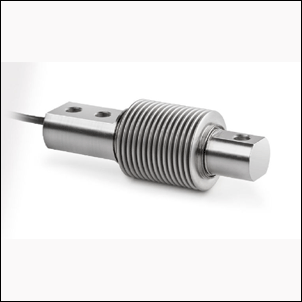

Bending Beam Load Cells ...

CB-Q/1, CB-Q/2 Accuracy in accordance with OIML R60 C3, CE and RoHS compliant. Dust and spray protection to IP68/IP69K (in accordance with EN 60529), welded to create a hermetic seal. Stainless steel. Area of application: Measuring mass as well as compressive force in harsh environments. Suitable for platform scales, weigh hoppers, flush-mounted floor scales and other weighing devices. 4-wire connection. Nominal sensitivity: 2 mV/V
CK Minature Aluminum Load Cells.Dust and spray protection to IP65 (in accordance with EN 60529) High level of accuracy.Suitable for small scales and kitchen scales and force-measuring devices·4-wire connection

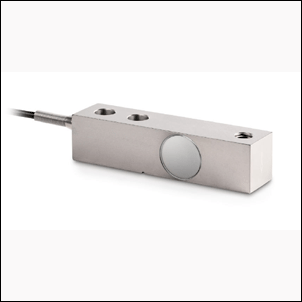

Shear Beam Load Cells ...

CT-Q1 Accuracy in accordance with OIML R60 C3, CE and RoHS compliant. Dust and spray protection to IP68/IP69K (in accordance with EN 60529), welded to create a hermetic seal. Stainless steel. Area of application: Measuring mass as well as compressive force in harsh environments
Stainless Steel Load Cells ...

CD Stainless Steel Load Cells. Accuracy in accordance with OIML R60 C3. Protection against dust and water splashes IP68 (in accordance with EN 60529), hermetically encapsulated. Scope of application: tensile and compressive force measurement. Suitable for vehicle scales, weigh hoppers, vehicle testing equipment, test benches, Hanging scales. Nominal sensitivity: 1,5 mV/V

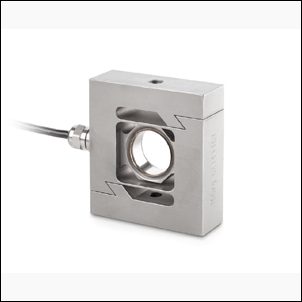

S Load Cells /Force Measuring Cells ...

CS-P1 Accuracy in accordance with OIML R60 C3 class C3, protection against dust and water splashes IP67 (in accordance with EN 60529), hermetic seal. Nickel-plated steel. Scope of application: for tensile and compressive force measurement
CS-Q1 6 wire “S” measuring cells for force and mass measurement
CS-P2 Accuracy class C3 RoHS compliant, protection against dust and water splashes IP68. S measuring cells and S load cells made from stainless steel

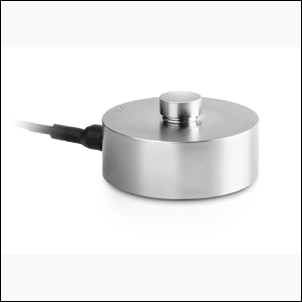

CR Load cells made of alloyed steel. High precision (comprehensive Error 0,05 % F.S.).Accuracy in accordance with OIML R60 C1. RoHS compliant. Protection against dust and water splashes IP68 (in accordance with EN 60529), hermetically encapsulated. Force transmission via pressure piece or threaded hole. Nominal sensitivity: 2 mV/V. Thread for pressure piece or other force application: up to 5000 kg M16×1,5, from 10000 kg M32×1.5

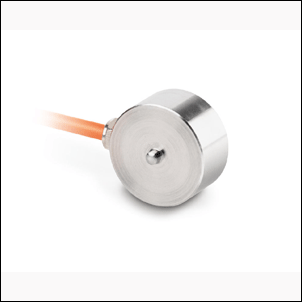

Button Type Weighing Force Load Cells ...

CO-Y1 Miniature button-type measuring cells made of stainless steel
CO-Y2 RoHS compliant protection against dust and water splashes IP66/IP67

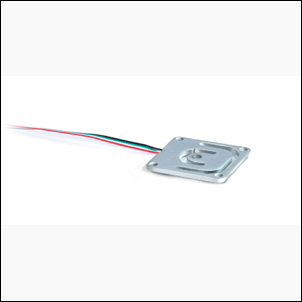

Miniature Load Cells ...

CK-Y1 Accuracy in accordance with OIML C1 RoHS compliant. High precision (comprehensive Error 0,05 % F.S.)
CK-Y4 Accuracy in accordance with OIML C1. RoHS compliant. High precision (comprehensive Error 0,05 % F.S.). Very slim design. Scope of delivery: 1 set (4 pieces). Quarter-bridge circuit: 4 load cells are connected to a full-bridge. No junction box required. Corner adjustment not possible
Load Cell Accessories ...

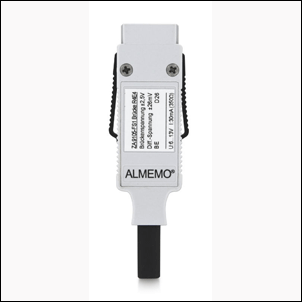

CE Analogue Ahlborn ALMEMO D26 measuring plug optionally configured and adjusted for SAUTER measuring cells
CJ Junction Box. Prepared for 4-wire and 6-wire measuring cells. Models available for 2, 4, 6 or 8 load cells
