Inelta Force Sensors

Inelta Force Sensors

Force Sensor KMM20/KMM30/ Force Measurement Push/Pull Direction ...

Force sensor KMM20. Force sensor for force measurement in tension and compression direction. Easy to adjust and integrate due to internal two-sided threaded pins. For optimum force application, we offer optional load transfer elements.
Force sensor KMM30. Force sensor for force measurement in tension and compression direction. Easy to adjust and integrate due to internal two-sided threats. For optimum force application, we offer optional load transfer elements.

Force Sensor KMM50 Force measurement in pressure direction up to 500 kN ...

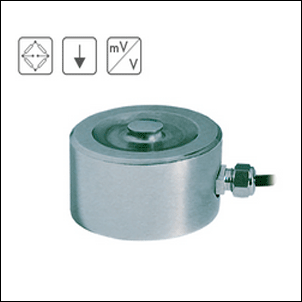

Force sensor KMM50. Load cell with spherical bearing, compact, for accurate measurement of large forces within small space. There are 3 screw threads for mounting on the underneath. For optimum force application, we offer optional load guiding elements.

Force Sensor KMM60 Force Sensor with 4x90° Fastening Drilling ...

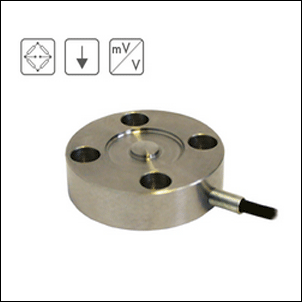

Force sensor KMM60. Load cell with spherical load button, compact, for accurate measurement of large forces in small space. Four through holes are used for screwing or ducting. For optimum force application, we offer optional load guiding elements

Force Sensor KMM65 Force Sensor through drilling. KMM 62 Force Sensor Push ...

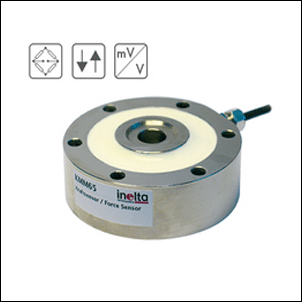

Force sensor KMM65. Force sensor / ring force sensor with particularly flat design, optimised for very precise detection of axially acting forces via the inner ring. There are 6 through holes for mounting
Force sensor KMM62. Force sensor for force measurement of small forces in tension and compression direction with high repeat accuracy. For use in tensile direction, 3 through holes are provided for mounting.

Force Sensor KMT55 Force Sensor with integrated Signal-Conditioner ...

Force sensor KMT55. Load cell with spherical load button and integrated signal conditioner. For optimum force application, we offer optional load guiding elements.

Force Sensor FT10 S-Form Force Sensor up to 50 kN ...

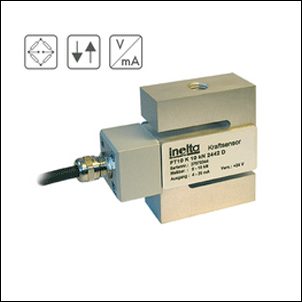

Force sensor FT10. S-beam force sensor with integrated signal conditioner and symmetrical design, good dynamic behavior, high breaking load range and easy integration possibility.

Force Sensor FS19 Shear Beam Force Sensor. Miniature Force Sensor ...

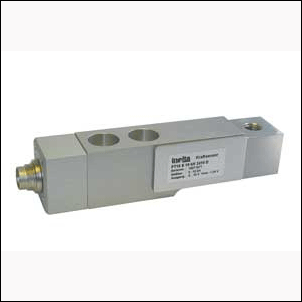

Force sensor FS19. FS19 bending beams measure tensile and compressive forces according to the double beam measuring principle. They are relatively insensitive to slight displacements of the force application, easy to mount and suitable for silo and tank scales, filling machines and more.
Force sensor FS12. Miniature force sensor, bending beam for tensile and compressive forces, easy to integrate due to high accuracy and reliability. Typical applications are small platform scales and equipment for dosing and level measurement.
Force sensor FS09. Miniature force sensor for 5 - 20 Newton, relativey high accuracy and reliability despite compact size. Typical applications are measurements of thread or web tension and forces of medical devices.

FS50 Force Measurement Pull Push Direction ...

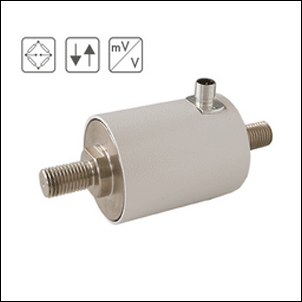

Force sensor FS50. Force sensor for tensile and compressive force measurement, stable construction with two-sided threat, for use between platforms, linkages, also suitable for tensile force measurements in tension and tensioning ropes.
