BOLA Distributors & Funnels


BOLA Multiple Distributors for Bottles ...

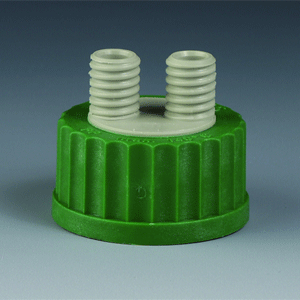

D612 BOLA Multiple Distributors for Bottles, PP.Green screw cap made of PP for bottle thread GL 45 and body made of PP. Insertion of tubing with a max. O.D. of 8,5 mm.
Restricted chemical resistance, for working temperatures up to +110°C
D614 BOLA Multiple Distributors for Bottles, PFA
D614 BOLA Multiple Distributors for Bottles, PFA.
D616 BOLA Multiple Distributors with Stopcocks, PTFE.
D620 BOLA Multiple Distributors with Ground Joint, PTFE.
D624 BOLA Multiple Distributors for Bottles, PTFE, PPS.

BOLA Distributors for Barrels & Containers ...

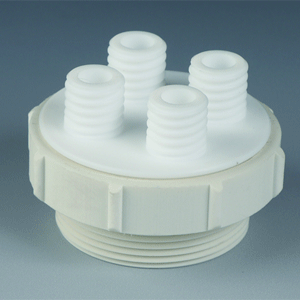

D696 BOLA Multiple Distributors for Barrels, PTFE.Screw cap made of glass-fibre reinforced PTFE for barrels with female thread, body with GL-threaded necks made of PTFE.
Very good chemical resistance, for working temperatures up to max.+ 200°C. The product is only exposed to PTFE.

BOLA Distributors for Reaction Vessels ...

BOLA Distributors for Reaction Vessels (R), PTFE.Blue screw cap made of PP with GLS 80 thread, body made of PTFE.
Center neck GL 25 with exchangeable shaft guide and screw cap for adjustment and centrical position of a stirrer shaft, all lalteral necks with GL threads.
Very good chemical resistance, for working temperatures up to max. +200°C (PP screw cap max. +110°C).

BOLA Distributors for Cannisters ...

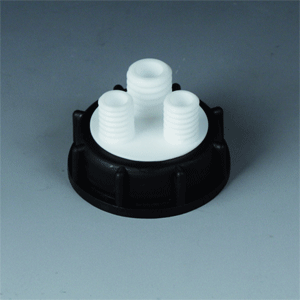

BOLA Distributors for Canisters, PTFE.Type with screw cap made of PE and body made of PTFE

BOLA Flexible Distributors ...

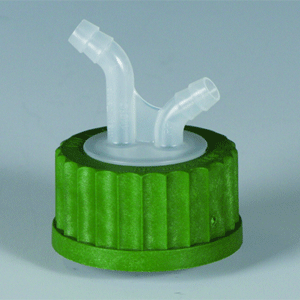

BOLA Flexible Distributors, PP. Screw cap green made of PP for bottle thread GL 45 and distributor body with hose connectors made of PP. Bent hose connectors on the upper side, straight hose connectors on the bottom side.
Restricted chemical resistance, for working temperatures up to max. +110°C.

BOLA Miniature Distributors & Manifolds ...

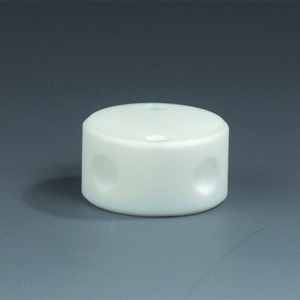

F710 BOLA Miniature Distributors, PTFE.Blocks with up to nine connections.
The tubing is connected by means of tube end fittings to a female thread UNF ¼” 28 G. With two mounting holes dia. 3,5 mm for fixing.
F712 BOLA Miniature Manifold Blocks, PTFE, FEP.Block made of PTFE with one inlet and four outlets with female thread UNF ¼” 28 G.
Also available with four stopcocks with stopcock plugs made of FEP for easy interruption and control of flow.

BOLA Funnels & GL Adapters ...

BOLA GL Funnels PTFE Funnel with a capacity of approx. 100 ml made of borosilicate glass. Inlet tube made of PTFE, connection with GL screw caps made of PPS as insertion for reaction vessels with GL-threaded necks.
The outlet tube has a length of approx. 64 mm on the lower side. The glass funnel can be fixed in each position.

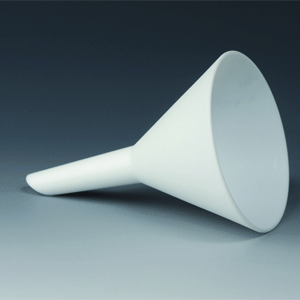

H920 Conventional PTFE Funnels
GL Thread Adapters
