Thyracont Vacuum Measurement and Control

Vacuum Measurement & Control


Compact Vacuum Gauges ...

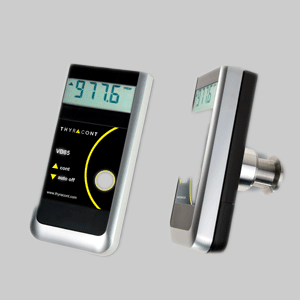

VD8 compact vacuum meter can be used as a portable instrument or for permanent installation in vacuum facilities. The vacuum meters can be operated by a battery or a plugin power supply

Smartline Transducers ...

Measuring Range 1200 to 5x10-10 mbar. | 900 to 5x10-10 Torr.

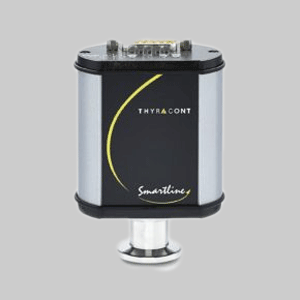

The digital transducers of the Smartline Series are characterized by their particularly efficient micro controllers. With their modern combination sensors these transducers are able to enter different pressure areas such as fine and high vacuum with high precision.

Thyracont Vacuum Controllers...

PVC Ion Gauge and Vacuum System Controller for passive UHV hot cathode ion gauges

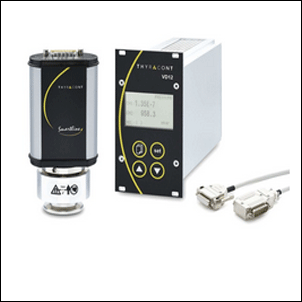

VD12 is an intelligent control unit for applications in apparatus and plant engineering or special equipment construction.19inch cassette 14 HP x 3 RE.
The Thyracont VD6 universal vacuum indicator and controller is designed for panel mounting. A relay monitor on the front panel allows continuous operation control of the two switch points.

Calibration...

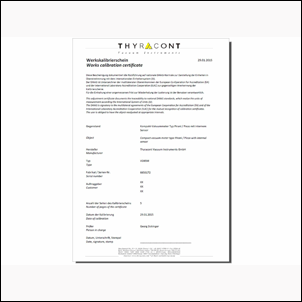

For all Thyracont gauges works calibration certificates (works calibration, 4 page documentation, 4 reference points per pressure decade, article number ADJCERT) can be provided. Both certificates are traceable to national DAkkS standards (German National Calibration Laboratory). DAkkS calibrations can also be offered on request.

Thyracont Cables,Software, Accessories ...

The VacuGraph software for Windows, Linux and MacOS is the optimum tool to analyze, visualyze and save your measurement data. For a comfortable gauge configuaration there is even a free lite version of the software available.
Smartlineā„¢ IP54 accessories. A mating plug with cable that improves the protection class of our smartline transducers with 15-pole Sub-D connection easily and quickly is to IP54 is available for applications where gauges are exposed to splash water and dust
Practical accessory sets are available for both our VD8 compact vacuum meters (VD8ZUB) and for our digital Smartline transducers (SLZUB). Among other things, they include a power supply unit for the respective vacuum gauge and an USB interface cable in order to connect the device to a PC or laptop.

Vacuum Transducers Sensors Heads ...

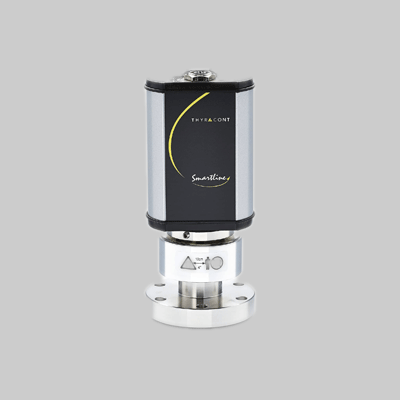

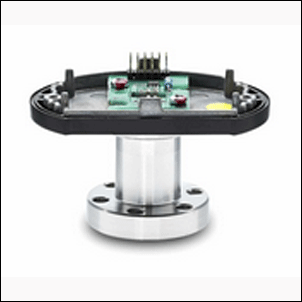

Replacement sensor heads for Smartline Vacuum Transducers

Vacuum DN KF Connections ...

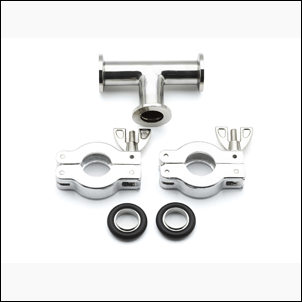

Adapters, Protective Covers, Components. A wide range of vacuum components. Special centering rings with integrated wire filter or baffles as well as spiral tubes protect the sensor against contamination.

Adapters for Smartline Transducers ...

Adapters for Smartline transducers to Leybold and Inficon Transducers
