Termpering Beakers

Tempering Beakers

Tempering beakers made of glass or metal Tempering beakers are double-walled containers that can be used to control the temperature of liquids or solids. Standard tempering cups are available out of Borosilicate glass 3.3 according to DIN / ISO 3585 or stainless steel. As standard connections for the tempering jacket olives are attached. The temperature is usually controlled by a circulation cooler. In addition to the standard tempering beakers, customized solutions are also manufactured. Here the dimensions, capacities and connections of the thermal hoses can be adapted to the customer's needs. Possible temperature hose connections are glass threads, small flanges, special olives or spherical joints.

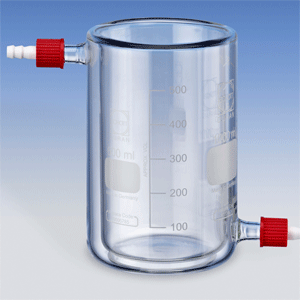

Glass Tempering Beakers ...

Borosilicatglass 3.3, operating temperature: max. 300 °C for Type T: max. 120 °C for Type T-GL
Coolant ram pressure max. 0.5 bar. Various special jacket joints, special dimensions

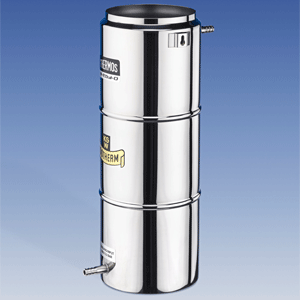

Stainless Steel Tempering Beakers ...

Tempering Beakers Made of Stainless Steel Type TSS-G
Good resistance to breaking,operating temperature max. 200 °C ( further temperatures by request )
Coolant ram pressure max. 0.5 bar
