Temperature Probes

PTFE Encapsulated Temperature Probes

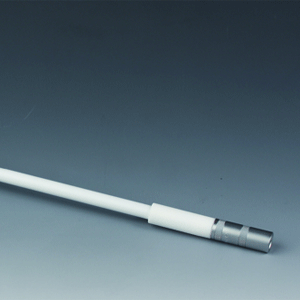

BOLA Probe PT 100 Lemo Compact ...

One measuring sensor PT 100 in a PTFE-encapsulated stainless steel tube (1.4571).
Temperature probe Ø 8 mm, tip Ø 6 mm, collar ring Ø 12 mm. Connection by a coupling (type Lemo®, socket size 1, 4-wire system) fixed directly at the end of the probe.

BOLA Temperature Probes Lemo Compact ESD, ESD ...

BOLA Temperature Probes Lemo Compact EX (PT 100), PTFE EX.One measuring sensor PT 100 in a stainless steel tube (1.4571) encapsulated with static dissipative PTFE-EX.
Temperature probe Ø 8 mm, tip Ø 6 mm, collar ring Ø 12 mm. Electrostatic charges can be discharged by a grounding clamp (not included in the scope of delivery).
Connection by a coupling (type Lemo®, socket size 1, 4-pole) fixed directly at the end of the probe.

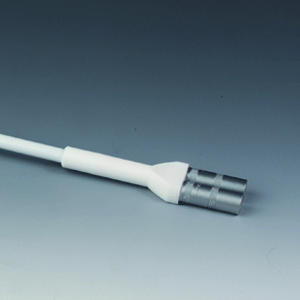

BOLA Double Temperature Probes Lemo Compact, PTFE ...

P1762 BOLA Temperature Probes Lemo
BOLA P1740 Two independent measuring sensors in one PTFE-encapsulated stainless steel tube (1.4571). Collar ring Ø 12 mm. Connection by two couplings (type Lemo, socket size 1, 4-wire system) fixed directly at the end of the probe.

BOLA Temperature Probes (PT 100), PTFE ...

BOLA Temperature Probes (PT 100), PTFE. One measuring sensor in a PTFE-encapsulated stainless steel tube (1.471).
Temperature probe Ø 8mm, tip Ø 6mm, collar ring Ø 12mm. With white PFA-coated cable (length: 1,5m, 4 strands).

BOLA Temperature Probes PT 1000 ...

BOLA Temperature Probes PT 1000. One measuring sensor PT 1000 in a PTFE-encapsulated stainless steel tube (1.4571).
Temperature probe Ø 8mm, tip Ø 6mm, collar ring Ø 12mm. With white PFA-coated cable (length: 1,5m, 2-wire system).

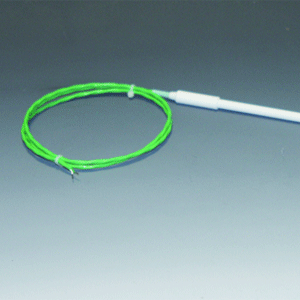

BOLA Temperature Probes K, PTFE ...

BOLA Temperature Probes K, PTFE.Thermocouple K (Ni Cr + Ni) in a PTFE-encapsulated stainless steel tube (1.4571).
Temperature probe Ø 8 mm, pointed tip, collar ring Ø 12 mm. With green PFA-coated cable (length: 1,5m).

BOLA Temperature Probes Accessories ...

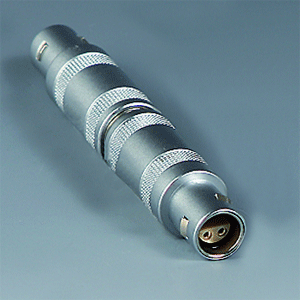

BOLA Adaptors for temperature probes. 4-pole adaptors.

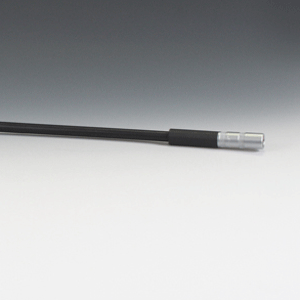

P1724 BOLA Extension Cable for Temperature Probes Lemo
