Thyracont Smartline Vacuum Transducers

Thyracont Smartline Vacuum Transducers


The Pirani and cold cathode transducers are also available with a particularly high over pressure stability of 16 bar. As a service for the higher overpressure stability, we offer a corresponding inspection certificate 3.1 inclusive of a test report.

Thanks to a plug-and-play solution with calibrated exchange sensors, a quick and easy replacement of defective sensor heads can be made simply by the user. Time and cost for maintenance are thus reduced to a minimum.

For the facile replacement of present transducers, the analogue output signal is adapted to the required characteristic of the competitor product. Corresponding mating plugs provide the physical compatibility of the Smartline transducers. The switching from a different gauge is thus fast and easy for the user.

The VacuGraph vacuum software for Windows is the optimum tool to analyze, visualize and save your measurement data. For a comfortable gauge configuration there is even a free lite version of the software available. In combination with the Blue tooth adapter (SLKBT) the VacuGraph software can even be used on mobile devices (Android). Furthermore, a free sniffer app, VacuSniff, can be found in the Playstore. VacuSniff allows for the mobile monitoring of up to 16 Smartline vacuum transducers at the same time. The app also features an alarm function.

Pirani Vacuum Transducers ...

VSP Pirani, 1000 to 1 x 10-4mbar, metal sealed, DN16KF
VCP Pirani Pt/Rh filament, 1000 to 5 x 10-4mbar, metal sealed, DN16KF
VCR Piezo / Pirani Pt/Rh filament, 1000-5x10-4 mbar, metal sealed, DN16KF
VSR Piezo / Pirani, 1200 to 1 x 10-4mbar, metal sealed, DN16KF
Piezo / Pirani, absolute pressure 1200 - 1x10-4 mbar and relative pressure -1260mbar ... +940 mbar, metal sealed, DN16KF

Pirani Cold/Hot Cathode Vacuum Transducers ...

VSM Cold cathode / Pirani, 1000-5x10-9 mbar, metal sealed, DN25KF
VSI Cold cathode, 2 x 10-3mbar to 5 x 10-9mbar, metal sealed, DN25KF
VSH Hot cathode / Pirani, 1000mbar -5x10-10 mbar, metal sealed, DN25KF

Piezo Pirani Vacuum Transducers...

VSP Pirani, 1000mbar to 1x10-4mbar, metal sealed, DN16KF, display

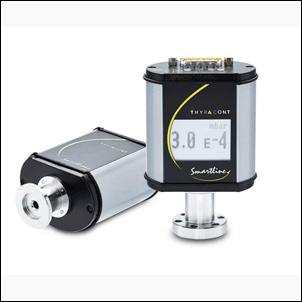

VCP Pirani Pt/Rh filament, 1000mbar to 5 x 10-4mbar, metal sealed, DN16KF, display
VSR Piezo / Pirani, 1200mbar to 1 x 10-4mbar, metal sealed, DN16KF, display
VSL Piezo / Pirani, absolute pressure 1200mbar - 1x 10-4 mbar and relative pressure -1260mbar ... +940 mbar, metal sealed, DN16CF, Display

Pirani Cold/Hot Cathode, Metal Sealed Vacuum Transducers...

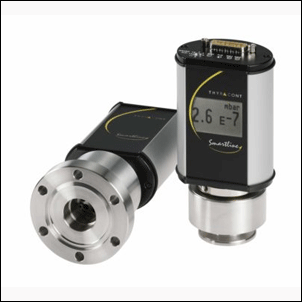

VSM Cold cathode / Pirani, 1000mbar-5 x10-9 mbar, metal sealed, DN25KF, display
VSI Cold cathode, 2 x 10-3 to 5 x 10-9mbar, metal sealed, DN25KF, display

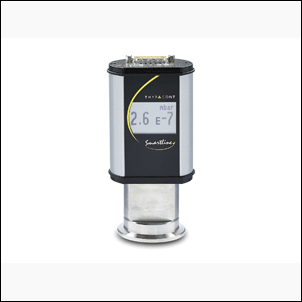

VSH Hot cathode / Pirani, 1000mbar-5 x 10-10 mbar, metal sealed, DN25KF, display

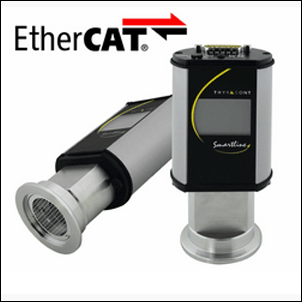

Pirani Vacuum Gauges, EtherCAT ...

Smartline Vacuum Transducers. Smartline transducers have a RS485 interface and an additional 0-10 V output, EtherCat,

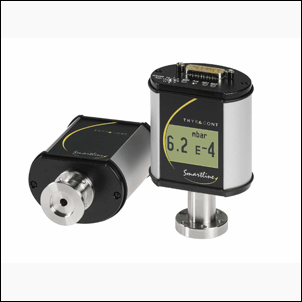

Pirani Vacuum Gauges, Profinet ...

Smartline Vacuum Transducers. Smartline transducers have a RS485 interface and an additional 0-10 V output, Profinet,

Logarithmic Vacuum Transducers ...

Smartline Vacuum Transducers

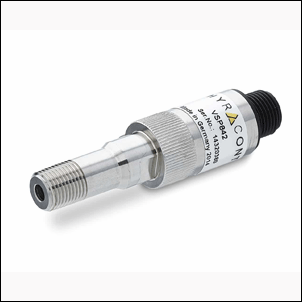

Passive Pirani Vacuum Sensors ...

Analogline Passive vacuum sensors VSP: Passive vacuum sensor Pirani 1000...100 - 1e-3 mbar Vacuum sensor: Pirani, dependent of gas type (750... 75 - 1e-3 Torr) VSP passive with DN16 ISO-KF connection The Pirani with durable, elasctic helix filament is also available as a passive vacuum sensor.
