PIL Ultrasonic Sensors


PIL Ultrasonic sensors solve tough sensing problems, detecting targets made of practically any material in difficult environments. Ultrasonic sensors are ideal for presence/absence sensing and precision distance sensing or tracking. They are particularly useful where other sensing technologies have difficulties such as with clear or shiny objects, foggy or particle laden air and splashing liquids and where larger sensors and longer sensing distances are required.

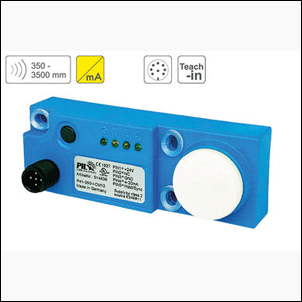

ultrasonic sensor PIL P41 Ultrasonic Teach-in Flat Form Sensors Compact, flat form factor ultrasonic sensors with teach in capability. Very robust plastic (PBTB) housing and IP/76, IP/65 protection class. The P41 range is available in switching and analog outputs and is very cost effective. Wide range of sensing distances from 60mm ( 2.4 in ) to 3500 mm ( 138 in ).







pil sensorP42 Ultrasonic Sensor Heads with separate evaluation electronics. adjustable with switches and programmable for sensing distances up to from 150mm ( 5.9 in ) to 8000mm ( 315 in ). Evaluation electronics are also listed.

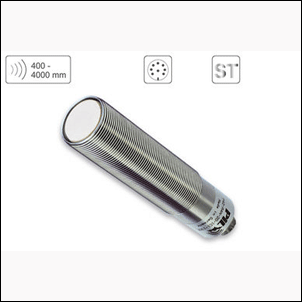

P42 Stainless Steel Ultrasonic Sensors Stainless steel housings, compact design with switching and analog versions. Sensing distances from 100mm ( 4 in ) to 3500mm ( 138 in ).





p42 electronics
P42 Ultrasonic Sensors. Programmable ultrasonic sensors with RS232 or RS 485 interfaces. Analog profiles and switch points can be set by an attached PC
P42 Plastic Ultrasonic Sensors Plastic housings, compact design with switching and analog versions. Sensing distances from 100mm (4 in ) to 3500mm (138 in ).

Evaluation Electronics for P42 Sensors

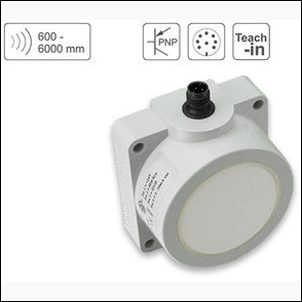

ultrasonic sensors P43 Tele-teach Ultrasonic Sensors Connector Version Low cost, ultrasonic sensors that allow sensing points and switching points to be defined and varied. Versions are available with sensing ranges that vary between 60 mm (2.4 in) to 6000mm (235 in). Supplied with 5 pin connector
P43 Tele-teach Ultrasonic Sensor Cable Version Versions are available with sensing ranges that vary between 60 mm (2.4 in) to 2000mm (235 in). Supplied with 2 meter long cable.
P43 Tele-teach Ultrasonic Sensors. Miscellaneous Versions The flat form factor rectangular sensors have connectors. Long range sensors are available with maximaum ranges of 3500mm and 6000mm. ATEX versions are available

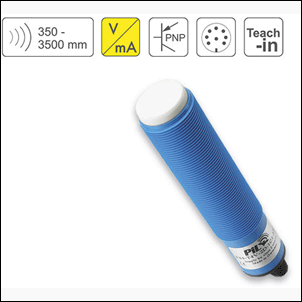

ultrasonic sensor P44 Ultrasonic Sensors. Teach in with analog output or two switch points. PIL P44 Teach in ultrasonic sensors enable the definition and changing of sensing parameters.

For an explanation of the teach-in process and how sensors are set Teach-in Sensor Operation






pil p47 sensors PIL P47 Standard Ultrasonic Sensors with analog outputs (0v-10V or 4mA-20mA) are microprocessor controlled and provide fixed parameter and are available in a wide range of differing sensing ranges with sensing distances from 60mm (2.4in) to 2500mm (98 in).
P47 Standard Ultrasonic Sensors with Switching Outputs. PNP or NPN are processor controlled and provide fixed parameter and are available in a wide range of differing sensing ranges with sensing distances from 60mm (2.4in) to 2500mm (98 in).





long range ultrasonic sensorPIL P47 Long Range Ultrasonic Sensors in the P47 range, flat, compact ultrasonic sensors with ranges up to 5m ( 195in)

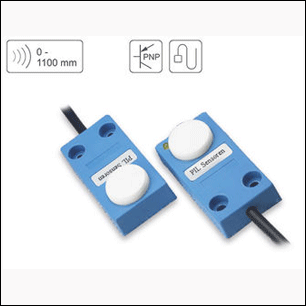

thru scan ultrasonic sensor P48 Miniature Thru-scan Ultrasonic Sensors compact sensors for detecting objects that pass between them.






ultrasonic sensor PIL P49 Cost Reduced Ultrasonic Sensors available in minumum orders of 50 each for OEM appliactions



.

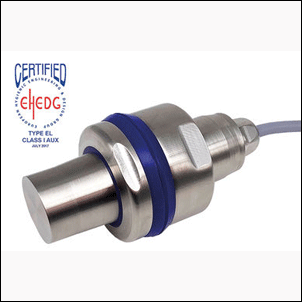

PIL P53 Ultrasonic Sensor P53 Robust STEEL HEAD. Housing Stainless Steel (1.4571) M30 or ø 30 with gap-free transitions. Resistance against aggressive media for chemical cleaning. High protection class IP68 / IP69K and increased temperature range up to 80°C. Slim sonic beams at a measuring range up to 1500 mm



Ultrasonic Sensor Mounting Accessories, connectors & Cables Accessories are provided to enhance the performance of ultrasonic sensors. Mounting brackets, deflector plates, connectors and cables
