Ultrasonic Sensors
Ultrasonic sensors are ideally suited to accurate, automatic distance measurement in normal and difficult environments. Ultrasonic sensors are particularly suitable for environments where optical sensors are unusable such as smoke, dust and similar. Ultrasonic sensors are very accurate, stable and can be used over large ranges. Complete list of PIL Ultrasonic Sensors

Ultrasonic sensors can measure the following parameters without contacting the medium to be measured:

Distance

Level

Diameter

Presence

Position

Ultrasonic sensors make accurate measurements in many difficult environments and unusual materials. Measurements are unaffected by:

Material

Surface

Light

Dust

Mist and Vapor

Measurements are highly repeatable, sensor outputs are linear and background interference is suppressed.

Applications

Industry Application

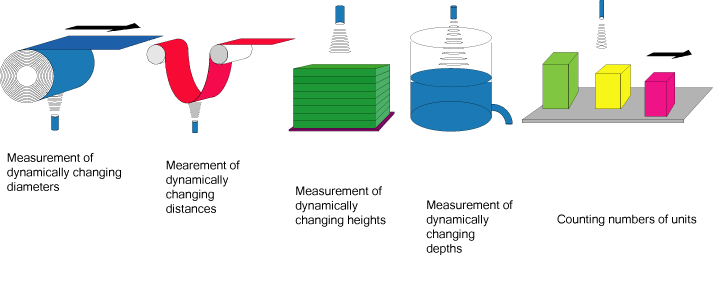

Ultrasonic sensors are used in a wide range of industries for many applications. The following diagrams and typical industries show where ultrasonic sensors are being used today. The lists and applications are not exhaustive. Complete list of PIL Ultrasonic Sensors

Winding & Unwinding

Ultrasound sensors are used to detect the changes in diameter of drums and reels as they are wound or unwound. Typical industries are:

Paper and Printing
Metal working
Textiles
Packaging
Plastics

Slope Control

Ultrasonic sensors are used to monitor the slope of loops of material in a process. They are the sensing components of systems that control continuous running of flexible material. Typical industries are:

Paper and Printing
Chemicals
Textiles
Metal Working
Packaging

Height Measurement

With high accuracy and repeatability, ultrasonic sensors are used to measure the height of objects that are moving past the sensor. Measurements are generally unaffected by surface finishes and shapes of the measured objects. Industries where this type of application are found include:

Automotive
Packaging and Distribution
Printing
Metal Working
Assembly
Agriculture

Position Control

Pairs of ultrasonic sensors are used to accurately position objects. Linked together in a control system. the sensors provide the prime input for object location and position adjustment. Industries using these applications include:

Automotive
Packaging
Printing
Assembly
Robotics
Plastics

Collision Protection

Ultrasonic sensors are attached to moving objects and equipment to provide collision protection. The sensor continuously relays proximity data to a controller. Many industrial users include:

Automotive
Automation
Logistics
Metal Working

Level Sensing

Ultrasonic sensors have a unique ability to detect uneven surfaces and return accurate distance data. The sensors are used in many applications where the detection of the level of a fluid in a container is needed. Typical industries include:

Food and Beverage
Chemical
Water Treatment
Power Generation

Filing Sensing

Ultrasonic sensors can accurately detect the changing levels of powders, grains and other semi fluid substances. Many industrial users include:

Agriculture
Chemicals
Packaging
Fluid Handling
