Inelta Force Sensors & Signal Conditioners

Inelta develops and produces a range of senors and controls in Ottobrunn, near Munich. With over 15 years experience with the design and application of sensors, Inelta has a variety of custom and standard products. Industrial, medical, aerospace, marine, power plant construction, supply and test labs are among the industries that Inelta successfully serves the Inelta. Ongoing improvements to the existing product portfolio and a steady process to ensure new developments ensure Inelta and its customers are up to date. Inelta is an ISO 9001 certified company.

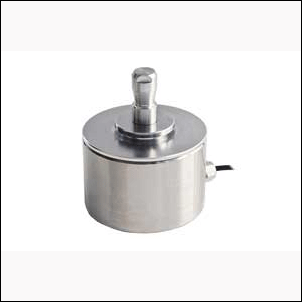

Miniature Force Sensors Miniature Force Sensors Inelta Force Sensors operate with foil strain gauges (DMS).measuring range from up 100N up to 5 kN. Tension / compression. Rugged construction and small dimensions protection degree: IP54.





Standard Force SensorStandard Force Sensors Inelta Force Sensors operate with foil strain gauges (DMS). Measuring range 2kN up to 20 kN. Tension / compression. Rugged construction and small dimensions. Protection degree: IP65





Force Sensor with integrated Signal ProcessingForce Sensors with Integrated Signal Processing Inelta Force Sensors operate with foil strain gauges (DMS). Measuring range 1 kN up to 10 kN. Compression / tension. Protection degree: IP64





Signal Conditioner DIN Rail Mounted Signal Conditioner. Amplification modules for force sensors including DMS full bridges with 5V or 10V bridge supply. For all strain gauge sensors. Temp. coefficient <0,02% F.S./°C. Misc.. output signals. Galvanically isolated . DIN Rail mounting.





Miniature Signal Conditioner Miniature Signal Conditioner Signal conditioning of LVDT displacement sensors. Miniature size: 25x25x9 mm. 16-Pin DIL with 2,54 mm-raster (Distance 20,32 mm). Offset, gain settings adjustable with external trim pots. Frequency adjustable by two external resistors. Supply voltage +/- 15 VDC. Compatible for LVDTs with center connection (5 connectors). Center position signal for exact positioning at PIN 6.



linear actuators

Linear Actuator Stroke up to 75 mm. High actuation forces. Integrated limit switch. Non-rotating plunger. Self locking plunger. High positioning accuracy





Motorized Potentiometer Front Panel Mounted Motorized Potentiometer Panel mounting. For multi turn potentiometer only Suitable as: set point device or rotary actuator .Compact design. Robust aluminum housing.
