Inelta Displacement Sensors and miscelaneous sensors

Inelta Displacement Sensors

Inleta Displacement Sensors ISAL, ISAT, ISAG ... LVDT displacement sensors with ball swivel heads Fastening to the pushrod and the housing with ball swivel heads
This LVDT Series is made for a rough, industrial use. The housing having a diameter of 20mm is fastened "floating" to the application using two ball swivel heads. There is a diversity of displacements up to 200m possible.

Inelta LVDT Displacement ISDL, ISDT, ISDG ... LVDT stands for Linear Variable Differential Transformer. The LVDT is an analogue and non-touching sensor with one primary and two secondary spools. With the linear movement of the tappet, an electrical signal is produced. Attached to the tappet, there is the ferromagnetic core. The core induces tension into the secondary spools.
The core inside the LVDT is attached to the pushrod, which is directly connected to the measured application.
Armature unguided: The armature is attached to the application, but still moves free inside the LVDT. The correct axial alignment is important. The pushrod moves without any contact.
Armature guided: A guided armature is guided using a maintenance-free bearing.
Armature as a taster function: The pushrod is guided using maintenance-free bearing. It is pushed out with an integrated feather.
Armature on both sides: The armature can come out of the back of the LVDT. This makes sense especially in very dirty environmental conditions, so the dust cannot settle inside the housing. According to that, this serves the mechanical protection when the application takes a bigger mechanical way that the displacement

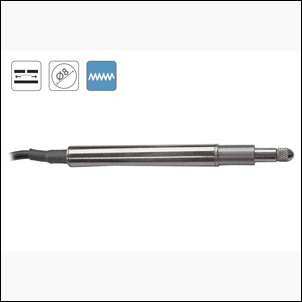

Inelta LVDT Displacement Sensors IKAL ... LVDT-IZAL Miniature Displacement Sensor - Housing Ø 4 mm. LVDT-IKAL Displacement Sensor - Unguided armature. LVDT-IKAT Displacement Sensor - Spring return. LVDT-ILAT Displacement Sensor - Spring return with linear ball bearing

Inelta LVDT Economy Series Displacement Sensors. IEDL, IEDT ... LVDT displacement sensors "Economy Series". With a higher Rel. linearity error and a smaller Operation temperature range as well as a simplified type of construction, these LVDTs can be produced and sold more cheaply. LVDT-IEDL Economy Displacement Sensor with Unguided Armature. LVDT-IEDT Economy Displacement Sensor with Spring Function.

Inelta LVDT Sensors with External Thread ... LVDT-IMAT Displacement Sensor with M12 External Thread and Spring Function. LVDT-IMDT Displacement Sensor with M12 External Thread, Spring Function and integrated Signal-Conditioner. LVDT-IMAL Displacement Sensor with M12 External Thread and unguided Armature

Inelta LVDT Sensors with M18 External Thread ... LVDT-IGAT Displacement Sensor with M18 External Thread and Spring Function. LVDT-IGDT Displacement Sensor with M18 External Thread, Spring Function and integrated Signal-Conditioner. LVDT-IGAL Displacement Sensor with M18 External Thread and unguided Armature. LVDT-IGDL Displacement Sensor with M18 External Thread, unguided Armature and integrated Signal-Conditioner.

Inelta IMA2 Signal Conditioners ... Signal Conditioning of LVDT Displacement Sensors and Force Sensors. Signal Conditioner in DIN Rail Housing. For LVDT Displacement Sensors, DMS Force Sensors and potentiometric Sensors. IMA2-DMS. Signal Conditioner for DMS Force Sensors. IMA2-R Signal Conditioner for Potentiometer
IVM2-LVDT Signal Conditioner for LVDT Displacement Sensors. IVM2-DMSSignal Conditioners for DMS Force Sensors.
Measurement amplifier in rugged IP65 housing For DMS Force Sensors and LVDT. IMK-DMS Signal Conditioner for DMS Force Sensors. IMK-LVDT Signal Conditioner for LVDT Displacement Sensors. IMK-DMS-OLED Signal Conditioner with OLED Display for DMS Force Sensors. IMK-DMS OEM Signal Conditioner for DMS Force Sensors, adjustable.
